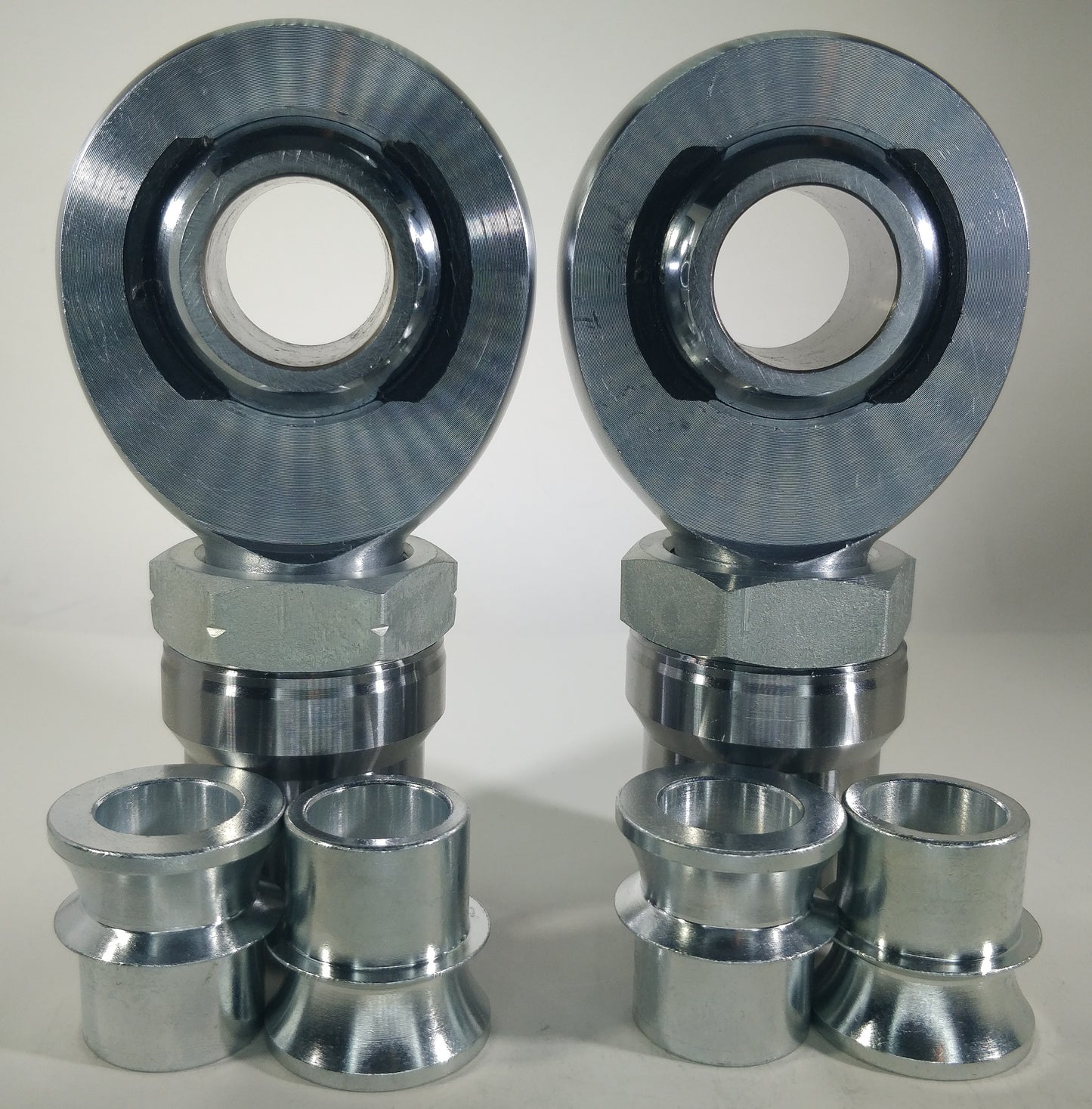

1.25" 1 1/4" Heim Joint Kit 4 LH & 4 RH 1" Bore With Bungs & Jam Nuts

This Kit Contains:

4 XMR16, 4 XML16, 4 LH Bungs, 4 RH Bungs, & 16 High Misalignment Spacers.

XM 16 Specs: 1 x 1 1/4-12

• 4130 Chromoly Male Rod End.
• Thread Size: 1 1/4-12 LH RH
• Ball Bore: 1"
• Ball Width: 1.375
• Centerline Length: 4.13
• Thread Length: 2.13
• Load Capacity: 76,200
• With Jam Nut

Weld-in Threaded Bung Specs:

Thread Size: 1 1/4-12

Fits Tube Size: 1" 3/4 OD. x .120 Wall x 1.51" ID.

High Misalignment Spacer Specs:

Material: 1045 Steel

Insert Diameter: .999

Inside Bore: .750

Outside Boss Diameter: 1.250

Overall Length In Ball: 2.625

Approximate Degrees: 60

Clear Zinc Plated
