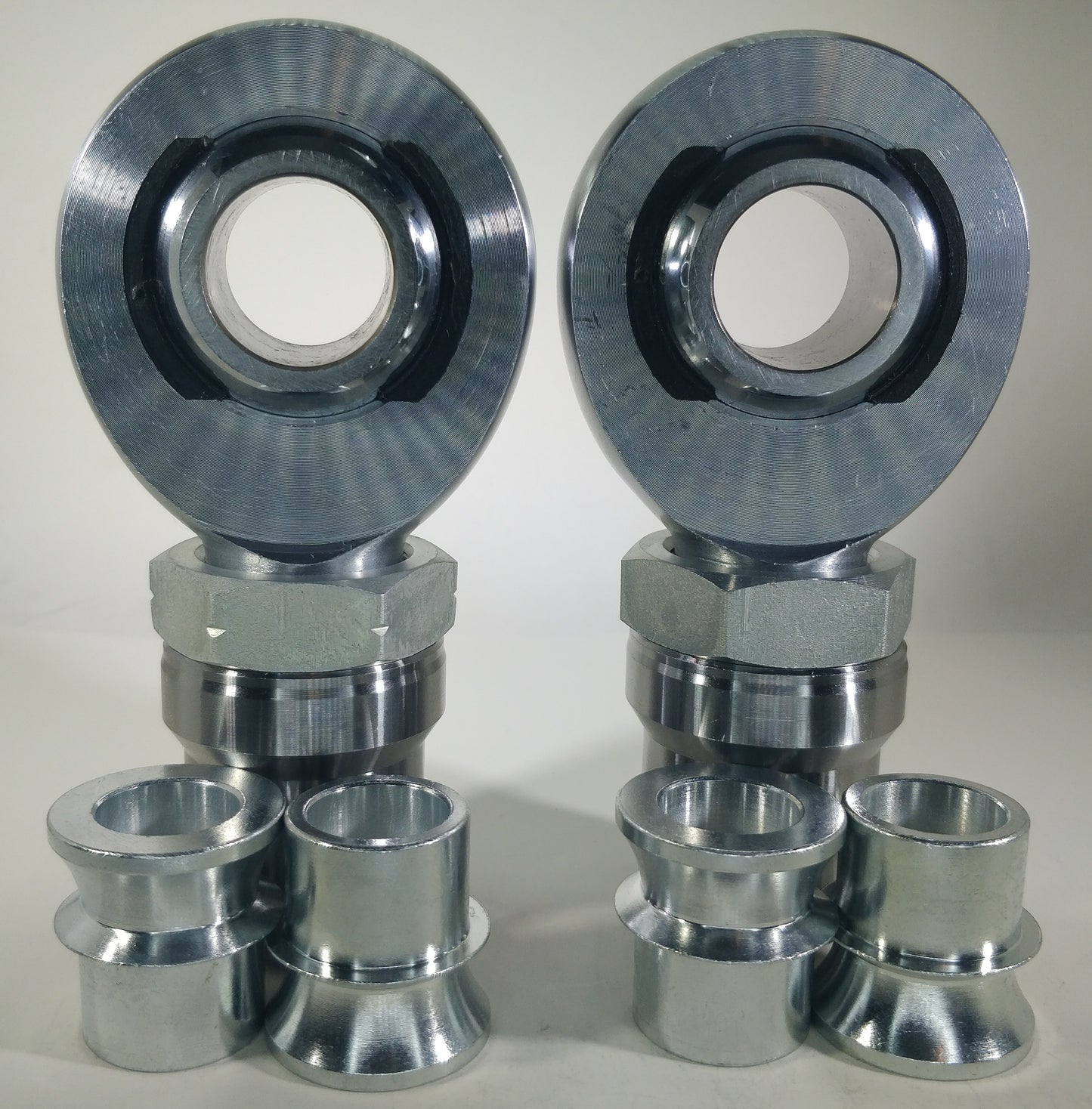

1.25" 1 1/4" Heim Joint Kit 8 LH & 8 RH 1" Bore With Bungs & Jam Nuts

1.25" 1 1/4" Heim Joint Kit 8 LH & 8 RH 1" Bore With Bungs & Jam Nuts

Regular price $929.99
Regular price Sale price $929.99
Sale Sold out
Shipping calculated at checkout.

This Kit Contains:

8 XMR16, 8 XML16, 8 LH Bungs, 8 RH Bungs, & 32 High Misalignment Spacers.

XM 16 Specs: 1 x 1 1/4-12

  • 4130 Chromoly Male Rod End.
  • Thread Size: 1 1/4-12 LH RH
  • Ball Bore: 1"
  • Ball Width: 1.375
  • Centerline Length: 4.13
  • Thread Length: 2.13
  • Load Capacity: 76,200
  • With Jam Nut

Weld-in Threaded Bung Specs:

Thread Size: 1 1/4-12

Fits Tube Size: 1" 3/4 OD. x .120 Wall x 1.51" ID.

High Misalignment Spacer Specs:

Material: 1045 Steel

Insert Diameter: .999

Inside Bore: .750

Outside Boss Diameter: 1.250

Overall Length In Ball: 2.625

Approximate Degrees: 60

Clear Zinc Plated
