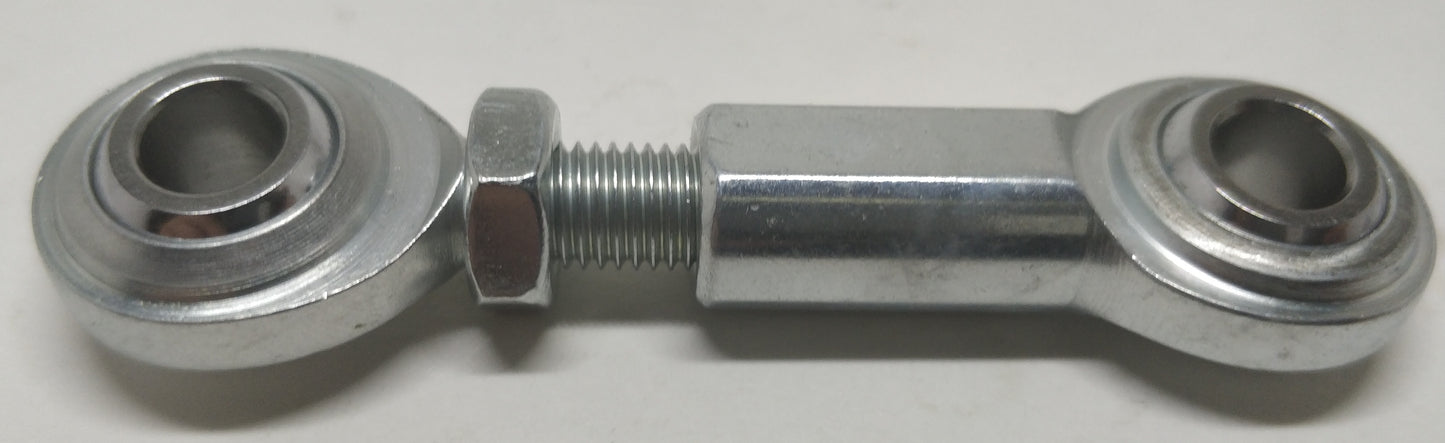

Adjustable Link RH 5/16"- 24 Thread with a 5/16" Bore, Rod End, Heim Joints

Center Of Holes: Closed To 2.43" & Open's To 3.00"

CMR-5 Specs: 3/8-24 RH Male Thread
Economy Male Steel Two Piece Rod End.
Thread Size: 5/16-24 RH
Ball Bore: .3125
Ball Width: .437
Centerline Length: 1.875
Thread Length: 1.250
Load Capacity: 5,110


CFR-5 Specs: 5/16 x 5/16-24 RH Female Thread
Mild Steel Construction
Thread Size: 5/16-24 RH
Ball Bore: .3125
Ball Width: .437
Centerline Length: 1.375
Thread Length: .687
Load Capacity: 5,110
