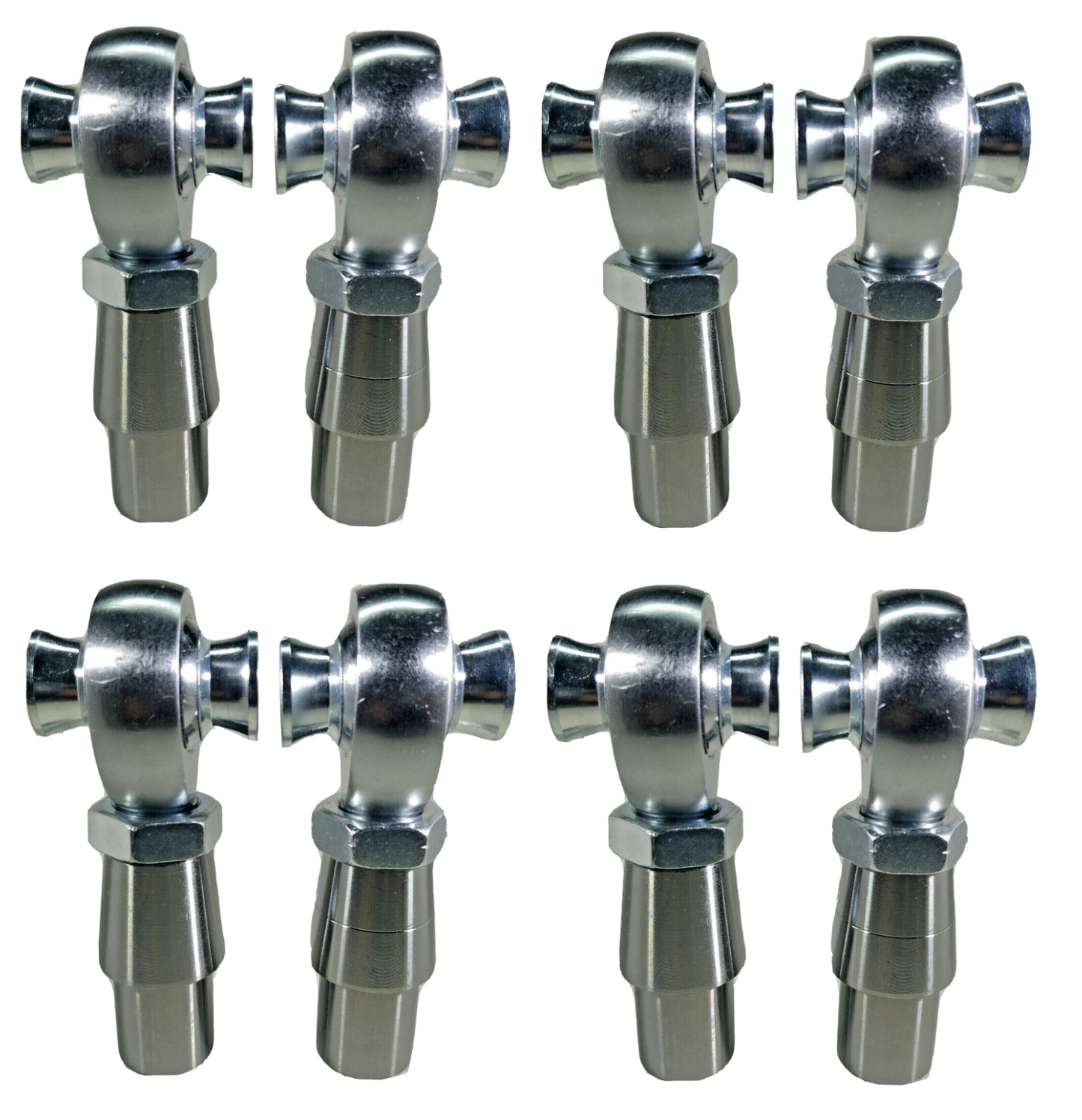

Chromoly 4 Link Rod End Kit XMR 12 LH Pan Hard Weld Bung .120 High Misalignment

Chromoly 4 Link Rod End Kit XMR 12 LH Pan Hard Weld Bung .120 High Misalignment

Regular price $189.99
Regular price Sale price $189.99
Sale Sold out
Shipping calculated at checkout.

This Kit Contains:

4 XMR12, 4 XML12, 4 LH Bungs, 4 RH Bungs, & 16 High Misalignment Spacers.

XM 12 Specs: ¾ x 3/4 -16

  • 4130 Chromoly Male Rod End.
  • Thread Size: 3/4-16 LH RH
  • Ball Bore: .750"
  • Ball Width: .875
  • Centerline Length: 2.875
  • Thread Length: 1.750
  • Load Capacity: 28,081
  • With Jam Nut

Weld-in Threaded Bung Specs:

Thread Size: 3/4-16 RH LH

Fits Tube Size: 1" 1/4 OD. x .120 Wall x 1" ID

High Misalignment Spacer Specs:

Material: 1045 Steel

Insert Diameter: .750

Inside Bore: .625

Outside Boss Diameter: .885

Overall Length In Ball: 1.875

Approximate Degrees: 27

Clear Zinc Plated
