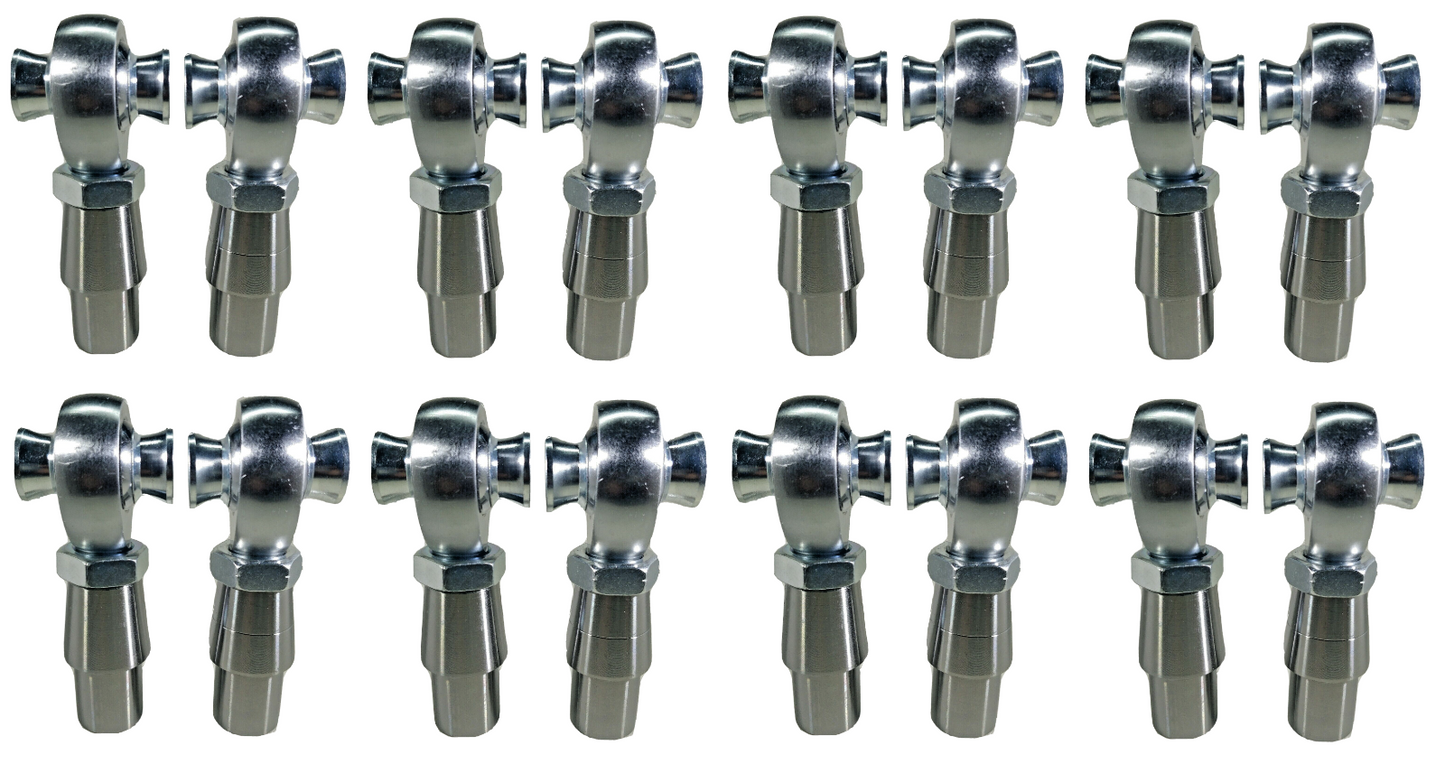

Full Set 3/4 x 3/4-16 Chromoly Heim Joints HMS 3/4-5/8 4 Link 8 LH + 8 RH
Full Set 3/4 x 3/4-16 Chromoly Heim Joints HMS 3/4-5/8 4 Link 8 LH + 8 RH
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
/
per
Share
This Kit Contains:
8 XMR12, 8 XML12, 8 LH Bungs, 8 RH Bungs, & 32 High Misalignment Spacers.
XM 12 Specs: ¾ x 3/4 -16
- 4130 Chromoly Male Rod End.
- Thread Size: 3/4-16 LH RH
- Ball Bore: .750"
- Ball Width: .875
- Centerline Length: 2.875
- Thread Length: 1.750
- Load Capacity: 28,081
- With Jam Nut
Weld-in Threaded Bung Specs:
Thread Size: 3/4-16 RH LH
Fits Tube Size: 1" 1/4 OD. x .120 Wall x 1" ID
High Misalignment Spacer Specs:
Material: 1045 Steel
Insert Diameter: .750
Inside Bore: .625
Outside Boss Diameter: .885
Overall Length In Ball: 1.875
Approximate Degrees: 27
Clear Zinc Plated
